Pattern Engineering: The Hidden Cost of a Bad Fit
A corset pattern is not a dress pattern. The bust point, waist suppression, and hip release must be drafted to your size chart, not the factory’s house pattern. If you accept the factory’s standard pattern, you will get a garment that fits the factory’s standard body, not your customer’s body. Require a pattern check on the first sample, and measure the actual garment against your spec, not the factory’s. The bust-to-waist ratio is the single most important number in a corset pattern. If that ratio is off by more than 1.5 cm in any size, the garment will not fit, and no amount of lace will fix it.
A lace corset is a structural garment. The seams carry the tension, and the thread holds the seams. Specify a polyester core-spun thread, minimum tex 24, and require a seam strength test on the boning channels. The boning channel seam is the highest-stress seam in the garment, and it is the first seam to fail if the thread is too light or the stitch density is too low. A 3-thread overlock on the raw edges is standard, but a 4-thread overlock on the boning channels is better. State it in the tech pack, and require a pull test on the sample. The factory will not volunteer this; you must ask for it.

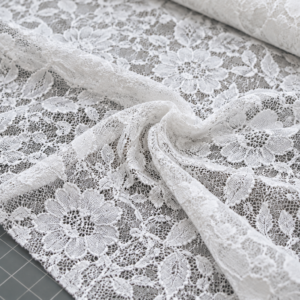

The lace you see on the sample is not always the lace you get in production. Specify the lace composition, the stretch direction, the repeat size, and the weight in grams per square meter. If the lace has a scalloped edge, specify whether the edge is cut or knit-in. A knit-in scallop is more expensive but will not unravel; a cut scallop is cheaper but will fray if not finished correctly. The factory will default to the cheaper option unless you specify otherwise. The weight of the lace matters because a heavier lace will hold its shape better, but it will also be more expensive. Know what you are paying for.
The boning is what gives a corset its shape, and the type of boning determines how the garment will perform. Specify the boning type: steel spiral, steel flat, or plastic. Steel spiral boning is the standard for structured corsets, but plastic boning is acceptable for fashion corsets that are not meant to be laced tightly. Specify the boning width, the length per size, and the placement. The boning must be in a channel, not sewn directly to the lace, and the channel must be wide enough to allow the boning to move slightly without twisting. A boning that is too tight in the channel will cause the garment to buckle when worn. This is a detail that is never visible on a sample but will ruin the fit in production.
The eyelets and lacing are the closure system, and they are the most common point of failure. Specify the eyelet material: brass, steel, or aluminum. Brass is the standard for quality garments, but aluminum is lighter and cheaper. Specify the eyelet size, the hole diameter, and the flange diameter. The eyelet must be set with a washer, not just pressed into the fabric. A washer-backed eyelet will hold under tension; a pressed eyelet will pull out. Specify the lacing material: flat cotton, round cotton, or satin cord. Flat cotton is the standard for corsets, but satin cord is more decorative. The lacing length must be specified per size, and the lacing must be long enough to allow the garment to be fully opened for fitting.
The Measurement Sheet: Where Most Tech Packs Fail
The measurement sheet is the most important part of the tech pack, and it is the part that most sourcing managers get wrong. The point of measurement (POM) must be defined for every size, and the tolerance must be stated. A tolerance of plus or minus 1 cm is standard for most garments, but a tolerance of plus or minus 0.5 cm is better for a corset, because the fit is more critical. The bust, waist, and hip measurements must be taken at the correct points, and the waist measurement must be taken at the natural waist, not the lower waist. The length measurements must be taken from the center back, not the side seam. These are details that a factory will not correct for you; you must specify them.
Before you approve a sample, you must have the following in writing: the wash test report, the seam strength test, the lace specification, the boning specification, the eyelet specification, the measurement sheet with tolerances, and the pattern check. If you do not have these, you do not have a specification; you have a hope. The factory will produce what you specify, not what you imagine. The difference between a successful production run and a failure is not the factory’s skill; it is the clarity of your tech pack.
A tech pack that says "lace corset, size S-XL, wash at 30°C" will produce a garment that looks like a corset but does not fit like one, does not wash like one, and does not last like one. The factory will quote you a price based on the cheapest interpretation of your specification, and you will get exactly what you paid for. The cost of ambiguity is not just the cost of the sample; it is the cost of the entire production run, plus the cost of the customer returns, plus the cost of the damage to your brand. A tech pack that costs $500 to produce can save $50,000 in production losses. That is the math of sourcing.
The factory is not your enemy, but it is not your partner either; it is your contractor. Treat it like one, and specify everything. The garment you save will be your own.
From the factory’s side, a tech pack is a contract. It tells them what to make, how to make it, and what the acceptable tolerances are. A factory that receives a vague tech pack will make assumptions, and those assumptions will be based on cost, not quality. A factory that receives a detailed tech pack will follow it, because it removes the risk of rework. The factory wants to produce a good garment, but it needs to know what a good garment looks like in your eyes. That is what a tech pack is for. It is not a wish list; it is a manufacturing instruction. Treat it as such, and the factory will treat you as a professional, not a tourist.
The Final Word
A lace corset is a complex garment, and its production in China is a process that rewards precision and punishes vagueness. The sourcing manager who specifies the wash test, the seam strength, the lace quality, the boning, the hardware, and the measurements will get a garment that meets the standard. The one who does not will get a garment that looks right in the sample photo and fails in the customer’s washing machine. The choice is not between a good factory and a bad factory; it is between a clear specification and an unclear one. Choose clarity, and the garment will follow. Choose ambiguity, and the garment will fail. That is the lesson of lace corset production in China, and it is the lesson that every sourcing manager must learn before the first sample is cut.
The tech pack is not paperwork; it is the product. The garment is just the result.
What to send us
If the specifications above match what you are sourcing, send your tech pack to Orange Sea Clothing. If the pack is not written yet, sketches and a reference sample are enough to start — sample development covers the design review, fabric and trim sourcing, pattern making and the first prototype, so you see fit and construction before you commit to a production run.
